Modern Science Lab Benches Blue Strong With Steel And Wood Material
Description of wall benches
| Type | Island bench | Side bench | Instrument table |
| Dimension(L*W*H)(MM) | L*1500*850 | L*750*850 | L*900*850 |
| Structure | C/ H Frame | C/ H Frame | C/ H Frame |
| Back panel for maintenance | / | / | Yes |
| Worktop | Ceramic/ Epoxy resin/ Phenolic Resin |
| Frame | 1.0/ 1.2mm cold-rolled steel with epoxy resin powder coating 55microns |
| Drawers& Doors | 1..0/ 1.2mm cold-rolled steel and flexible design, Epoxy resin powder coating |
| Handle | Stainless steel/ Aluminum alloy |
| Hinge | Stainless steel |
| | Reagent | Tempered glass with/ without cabinets |
| Sink | Polypropylene |
| Faucet | Solid brass with epoxy resin coating, UV and chemical resistant |
| Pegboard | Polypropylene/ Stainless steel |
| | Emergency safety shower& eyewash |
| Fume extractor/ Atomic Absorption extractor |
| Water baffle |
| Electrical socket |
| Data point |
1. Products name: steel and wood wall benches
2. Size: L2400/3000/3600*W750*H850 mm (customized)
3. Color: blue, yellow, gray white, red (optional)
4. Worktop: a. 16/19/25mm epoxy resin board
b. 12.7mm solid physiochemical board
c. 20mm ceramic
d. 20mm marable
5. Cabinet body: 16mm MFC, use a section of PVC waterproof edge treatment, with the
properties of waterproof, corrosion, decay
6. Door and drawer: 18mm thick MDF, use a section of PVC waterproof edge treatment,
with the properties of waterproof, corrosion
7. Handle: a. PVC handle
b. aluminum alloy
c. stainless steel handle
8. Hinge: DTC 105°/175°degree hinge
9. Rail: the DTC three mute slide
10. Foot: laboratory dedicated high-strength nylon with a combination of stainless steel
adjustable feet, adjust the range 0-50mm, the ground for easy cleaning
11. Reagent shelf: aluminum alloy columns with epoxy resin coating, 12mm thick tempered
glass shelves with stainless steel rails, static load more than 250kg
12. Features: a. table worktop with superior resistance to acids, organic solvents
b. resistant to high temperatures, good scratch resistance, never bending deformation
c. easy to clean, physical properties
d. loading capacity more than or equal 300kg
Note: About this product, all of specification can select by yourself through your requirement!!

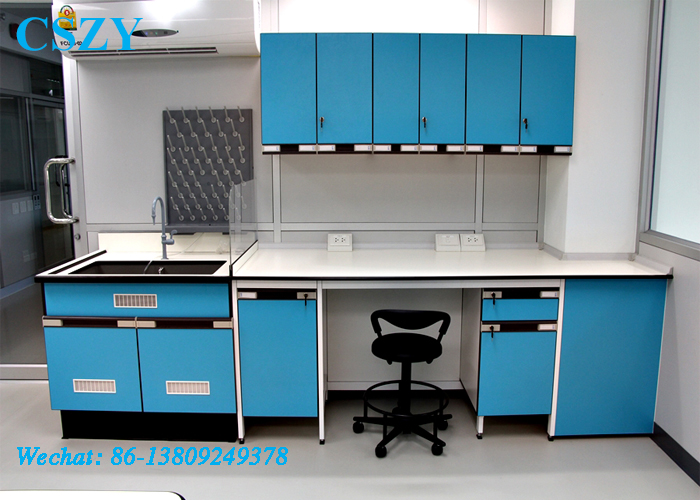

Products pictures
Advantage
1. epoxy resin worktop has strong chemical resistance and acid
2. price cheaper than all steel material
3. with great bearing performance
4. easy installing, 30 faster than other model of all steel lab wall bench
5. comvenient for cleaning with frame mounted cabinet

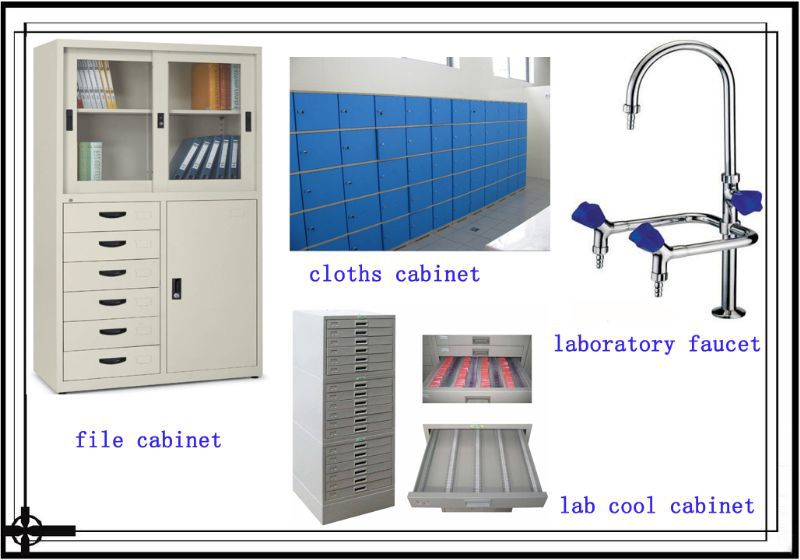

Other related products
Our other projects
Application
Our company detail
Guangzhou CSZY Lab System Co., Ltd. is professional in lab projects, dedicated to laboratory system engineering solutions. We supply all process including laboratory design, laboratory equipment production, laboratory furniture installation and after- sale service. We have high-quality production lines, and use the best lab furniture materials and a modern standard from the USA and Europe. We can make the whole lab projects match your laboratories with our perfect design.
About delivery and packing

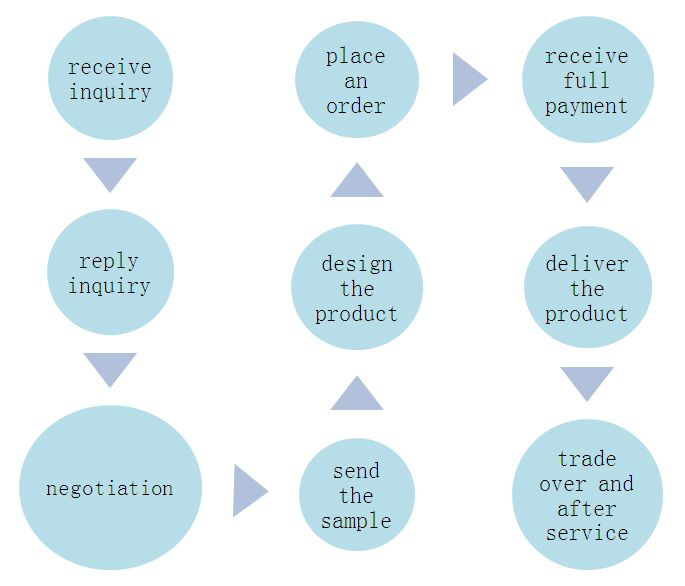

Our service
Our advantage
Looking forward to receive your inquiry and welcome to visit our company!
